Concealed Hinge Jig with Quick Clamp and Dust Vacuum Adapter Concealed Door Hinge Jig 35mm
About this item 【DURABLE AND ACCURATE】All metal cabinet hinge jig made of high quality aluminum alloy is more durable and accurate than plastic jigs. The all metal concealed hinge jig bulit-in double bearings provides continuous hinge hole drilling and much easier. The 35mm carbide tipped bit is solid and sharp for cabinet door hinges installation. Concealed cabinet hinge jig wood hole puncher locator help you drill accurate and fast as drill press. 【WORK WITHOUT DUST】The built in metal dust bracket of GOINGMAKE concealed hinge jig is suitable for 1-3/8 inch vaccum hose and easy to connect with your vaccum. The world’s latest dust vacuum adapter makes cabinet hinges drilling without any dust for woodworking. Greatly improves the efficiency and accuracy of installing cabinet hinges. The 1-3/8 inch dust adapter is perfect for most vaccum dust collector. 【EASY AND FAST】GOINGMAKE cabinet hardware jig provides quick cabinet hinge hole depth setting without any measuring. The 35mm concealed hinge jig provides drill depth from 0-0.6 inch. Perfect for 1/2 inch overlay hinges or any others. 【VERSATILE CABINET HINGE JIG】The concealed door hinge jig can work with 2mm, 3mm, 4mm, 5mm and 6mm hinge offsets for most concealed hinges. Have no difficulty on any concealed hinges installation with 35mm hinge hole drilling jig. Our 5/64 inch drill guides provides 4 kinds of hinge screw holes spacing including 42x11mm, 48x6mm, 52×5.5mm, 45×9.5mm for most hidden cabinet door hinges installation. 5/64 inch drill bits is included. 【QUICK CLAMP DESIGN】We provide quick clamp on the GOINGMAKE 35mm hinge hole drilling jig pro max type. You can clamp and fix the concealed hinge jig on the workpiece easier and fast. Save a lot of time and make woodworking easier.
› See more product details
Landscaping Shopping Event
Hurry and get discounts on all Products up to 15%
Sale_coupon_15
$44.63
Pick up from the Landscaping Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
7-12 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
Description
Product description

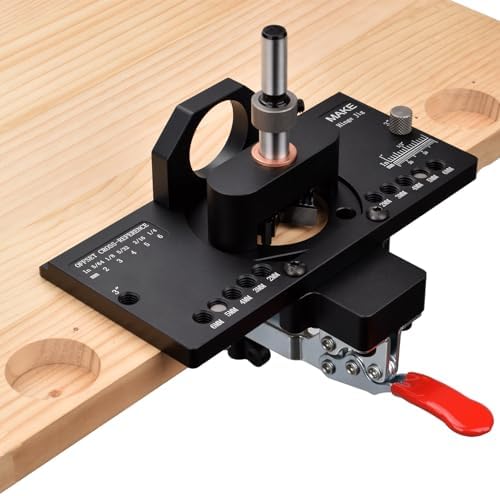

GOINGMAKE 35MM Metal Cabinet Hinge Jig with Quick Clamp and Dust Connector
GOINGMAKE provides high quality tools all the time and create more and more helpful and durable tools for DIYer, home owner and professional wood worker. GOINGMAKE 35mm hinge jig pro max is made of all metal and built-in bearing drill guide is durable to use and easy to drill accurate hinge holes instead of drill press. Including quick clamp on the jig help you clamp on the workpiece fast without any other clamps. The concealed hinge jig with1-3/8 Inch dust collection adapter is suitable for most of dust collector makes workshop and house clean during drilling. Including 2/3/4/5/6mm offset and 42*11, 48*6, 52*5.5, 45*9.5mm hinge screw hole drill guide. The carbide tipped 35mm drill bit provide clean and sharp drilling performance.
Features of GOINGMAKE All Metal Concealed Hinge Jig Pro Max
All Metal Cabinet Hinge Jig with 35mm Metal Drill Guide Built-in Double Bearing
GOINGMAKE concealed hinge jig for cabinet hinges is made of all metal. Durable and accurate to drill 35mm hinge holes. Perfect for cabinet hinge installation. It is made for home improvement, DIY and professional woodworking. Perfect for cabinet door mounting. The metal 35mm drill guide is built in double bearing. Hinge drill guide provide you smooth and accurate hole drilling.
Including Quick Clamp
We provide quick clamp on the GOINGMAKE 35mm hinge hole drilling jig pro max type. You can clamp and fix the concealed hinge jig on the workpiece easier and fast. Save a lot of time and make woodworking easier.
2/3/4/5/6mm Offset and Quick Depth Setting
Provide 2/3/4/5/6mm offset fits for most kinds of concealed hinges, euro hinges. 2*11, 48*6, 52*5.5, 45*9.5mm hinge screw drill guide suitable for most kinds of concealed hinges. Easy to drill and help you install the cabinet hinge in the right position.
Drilling 35mm Hinge Hole without Dust Including Vaccum Dust Adapter,Also there is a 3 inch quick setting for cabinet hinge position.
Fits 2/3/4/5/6mm concealed hinge offset
Including 45×9.5mm, 42x11mm,48x6mm,52×5.5mm hinge screw hole drill guide and drill bits.
Specification
